Designing an elite, uncompromising indoor golf simulator experience requires selecting an ultra-premium launch monitor that delivers flawless data capture. In the premium space, two dominant hardware architectures command the attention of commercial operations and low-handicap residential players alike: the legendary floor-based Foresight GCQuad and the modern overhead-mounted TrackMan io. While both systems claim absolute mastery over indoor golf data, they approach tracking from polar opposite physical and technological dimensions. In this definitive benchmark analysis, we will contrast the Foresight GCQuad vs TrackMan io across real-world data fidelity, installation parameters, and raw software agility to guide your investment decision.
The Quick Answer: Choosing the Ultimate Launch Monitor
- The Technical Difference: The GCQuad utilizes a ground-based, quad-scopic high-speed optical camera array. The TrackMan io uses an overhead-mounted hybrid system combining high-speed tracking cameras with advanced radar modules.
- Primary Application: The GCQuad remains the absolute gold standard for pure, unadulterated club-fitting precision and portable practice. The TrackMan io is engineered exclusively as a fixed, permanent indoor simulator centerpiece designed to keep the floor completely clear.
- Data Capture Rules: GCQuad directly measures exact face-to-path and impact locations visually with specialized club dots. TrackMan io tracks ball and club dynamics natively without any stickers, optimized solely for indoor flight distances.
Tracking Philosophies: Quad-Scopic Vision vs Overhead Hybrid Radar
The debate between the Foresight GCQuad vs TrackMan io centers on where your tracking hardware should live and how it views the ball at impact.
The Foresight GCQuad rests on the ground, roughly two feet away from the golf ball, looking directly up at the hitting area. It features four independent high-speed camera sensors calibrated to track both ball dimple rotations and physical clubface changes across a microscopic field of view. Because it sits incredibly close to the impact zone, its optical fidelity is practically flawless. It does not care about your room’s ceiling height, ambient lighting, or screen distance. It measures everything directly and instantaneously.
The TrackMan io represents a massive design departure. It is permanently bolted directly to your ceiling, positioned slightly forward of the hitting mat. It blends an advanced optical camera sensor with a continuous tracking radar array. By looking down on the ball from above, it completely eliminates any ground-level hardware clutter. This overhead perspective is ideal for multi-user commercial bays or clean residential layouts where a floor-mounted device could be accidentally struck by a stray club or ball.
[IMAGE PLACEHOLDER: Side-by-side architectural diagram showing the tracking vectors and camera sights of the ground-based GCQuad versus the ceiling-mounted TrackMan io. Alt Text: Foresight GCQuad vs TrackMan io technical layout and tracking vector diagram.]
Raw Accuracy Benchmarks and Metric Analysis
When comparing the data output of the Foresight GCQuad vs TrackMan io, both machines capture the key core ball metrics flawlessly. Ball speed, launch angle, total spin, and side spin are recorded with immense accuracy that easily outclasses entry-level simulators. However, their methods for capturing structural club data differ substantially.
The GCQuad Club Data Advantage
To unlock complete club data on the GCQuad, you must apply four small, reflective aluminum matrix dots to the face of your club. The four cameras track these distinct markers as they enter the hitting zone, capturing the absolute orientation of the clubface down to a fraction of a millimeter. This allows the GCQuad to directly and visually measure:
- Precise horizontal and vertical impact locations (sweet spot deviation)
- True Angle of Attack and dynamic loft angles
- Real, uncalculated Face-to-Path and Club Path orientation
This level of detail makes the GCQuad the unquestioned king for club fitters and professional touring players seeking definitive confirmation of their swing physics.
The TrackMan io Measurement Profile
The TrackMan io does away with club stickers entirely. Its internal radar module tracks the bulk movement of the club head as it approaches the ball, while the overhead camera captures the initial launch mechanics. It delivers highly reliable club head speed, club path, and face angle metrics natively.
However, because it views the club face from an overhead angle without reflective tracking markers, it cannot directly measure the exact vertical or horizontal striking point on the clubface. Instead, it calculates the impact location using advanced software modeling based on the resulting ball launch parameters. For everyday game simulation and high-fidelity target practice, this calculation is incredibly seamless, but it introduces a minor layer of interpretation compared to the direct optical data of the GCQuad.
Space Constraints and Installation Workflows
Your physical room dimensions are the absolute gatekeeper when deciding between the Foresight GCQuad vs TrackMan io.
Room Setup Comparison Matrix:
+-------------------+-----------------------------+-----------------------------+
| Specification | Foresight GCQuad | TrackMan io |
+-------------------+-----------------------------+-----------------------------+
| Placement | Ground (Side of Ball) | Ceiling (Overhead Mounted) |
| Hitting Zone | Large 14" x 18" Area | Precise Optimized Zone |
| Portability | Fully Portable (Battery) | Fixed Installation Only |
| Minimum Ceiling | Determined by Club Swing | Strict 9'6" to 10'0" Min |
+-------------------+-----------------------------+-----------------------------+
The GCQuad is a highly portable device. It contains a robust, swappable lithium-ion battery package and a crystal-clear outdoor-viewable LCD display panel. You can easily lift it by its built-in carry handle, toss it in your golf bag, drive to an outdoor grass range, and receive flawless tracking data on real turf. In your home studio, it simply sits on the floor. If you have a narrow room where left-handed and right-handed golfers alternate, you will have to manually move the unit from one side of the hitting mat to the other between shots, which requires recalibrating the target zone.
The TrackMan io is a non-portable commitment. Once mounted to your ceiling bracket, it must be aligned, focused, and calibrated using specialized calibration plates. It runs on a continuous power supply and connects directly via high-speed Ethernet cables to a high-end control computer. The massive benefit of this setup is that it accommodates both left-handed and right-handed golfers simultaneously without ever moving a single piece of hardware. However, your ceiling must meet a strict height requirement (typically between 9.5 and 10 feet minimum) to allow the tracking lenses to achieve the correct angular view of the hitting mat.

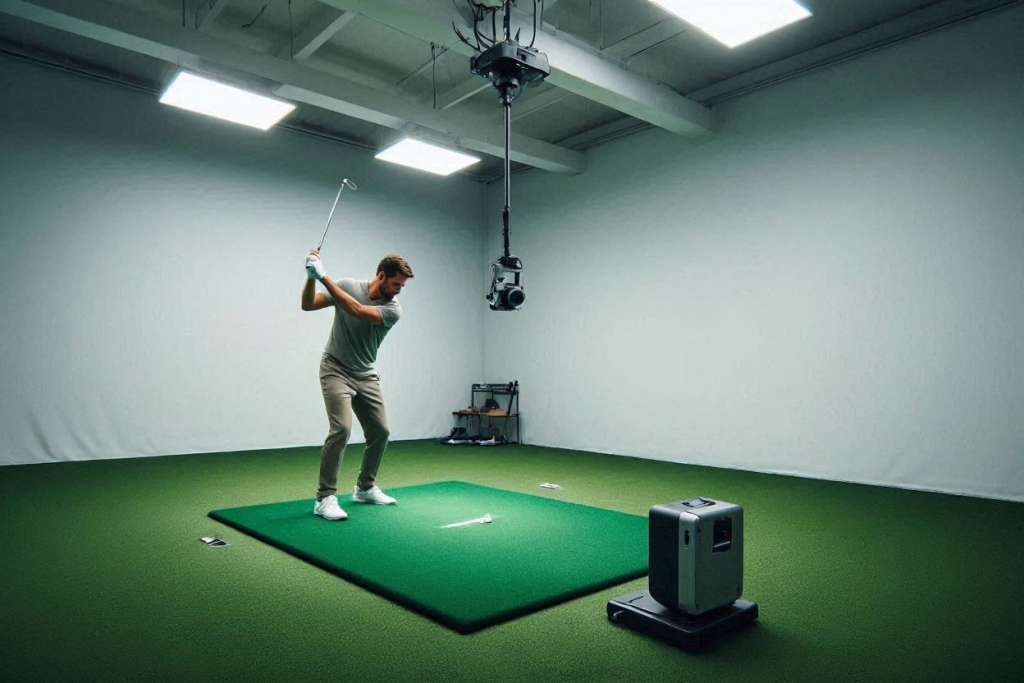

[IMAGE PLACEHOLDER: A real-world photo showing a clean, unobstructed hitting bay utilizing an overhead tracking mount versus a portable floor-based launch monitor setup. Alt Text: ]
Native Software Ecosystems and Simulator Platform Freedom
Investing in ultra-premium tracking hardware means navigating their proprietary software ecosystems and third-party compatibility rules.
The TrackMan Virtual Golf Experience
TrackMan io operates natively on TrackMan’s custom software package. TrackMan has meticulously mapped hundreds of the world’s most exclusive golf courses using high-definition drone lidar scanning. The graphics engine is highly optimized, presenting stunning lighting details, realistic turf interaction modeling, and a highly competitive global online tournament structure. The user interface is refined, professional, and familiar to anyone who has visited a commercial indoor simulator center.
The Foresight Sports Ecosystem
The GCQuad pairs natively with FSX Play and FSX 2020. FSX Play utilizes a high-end gaming engine that renders courses with striking clarity and rich color palettes. However, the most important software advantage for the GCQuad is its native, officially sanctioned integration with GSPro—the undisputed community-driven leader in simulator software. GSPro offers hyper-realistic ball-flight physics modeling and access to thousands of custom-designed courses. The GCQuad streams its data into GSPro instantly, creating an incredibly robust platform for competitive online match play.
[EXTERNAL LINK: Official Foresight Sports integration manual for linking ultra-premium optical launch monitors to custom tracking servers.]
Custom Maintenance and Calibration Optimization Guide
To protect your premium tracking investment and eliminate any potential missed reads or data dropouts, you must maintain your equipment meticulously. Both systems are highly sensitive, lab-grade optical configurations that require regular preventative maintenance.
Implement this custom studio configuration checklist to maintain perfect tracking fidelity:
- Camera Lens Purge: For the ground-based GCQuad, use an ultra-soft optical lens pen or compressed air weekly to remove microscopic dust, grass clippings, and debris that settle on the glass lenses from the hitting mat.
- Chamber Vibration Dampening: For the overhead TrackMan io, ensure the ceiling bracket is bolted directly to a solid structural joist. Any structural vibration from the floor above or from heavy ball impacts against your simulator screen can shake the mount, causing momentary calibration mismatches.
- Mat Marker Preservation: If utilizing club tracking on the GCQuad, ensure your club face is completely dry and free of grass oil. Moisture on the face can cause the reflective silver markers to slide or distort under the immense G-forces of impact, leading to a temporary error reading.
- Ball Marking Realism: When tracking high spin rates indoors on the TrackMan io, utilize clean premium golf balls without extensive marker scuffs. Keep your ball faces clean to ensure the optical camera system can trace the dimple edge profiles accurately.
By ensuring your environmental lighting is balanced and keeping the tracking optics completely clear of dust, your high-end simulator studio will deliver flawless tracking precision on every single swing.
